Option Analytics

Option Analytics panel allows options traders to see prices, Greeks, build and analyze risk profiles

Option Analytics is a professional panel for options traders that allows making strong options analysis and send orders in one click.

To open a new Options Analytics panel, go to the Main menu (Logo icon) and select Options Analytics in the Analytics section.

Open Options Analytics panel via Main menu

Key Elements of Options Analytics panel

Underlying Asset & Account for selecting a trading instrument that has an option series and selecting trading account (in case of multiple accounts)

"Mode" controls the visibility of additional panels — Options Desk, Options Risk Analyzer, Volatility Smile (Skew)

Level 1 Data bar provides basic information about current Ask, Bid, Last prices, spread and day range of selected symbol

Options Desk

(1) - This control allows to manage simultaneously visible options series and strikes. (2) - Right click on table's header will show a context menu where trader can select visible columns. (3) - Paper column is an interactive column that used to add a paper position to porfolio, to do it - click on column's cell and set value. (4) - Right click on a row will show a strike's context menu

(5) - Double click on Ask/Bid cells will open an Order Entry panel

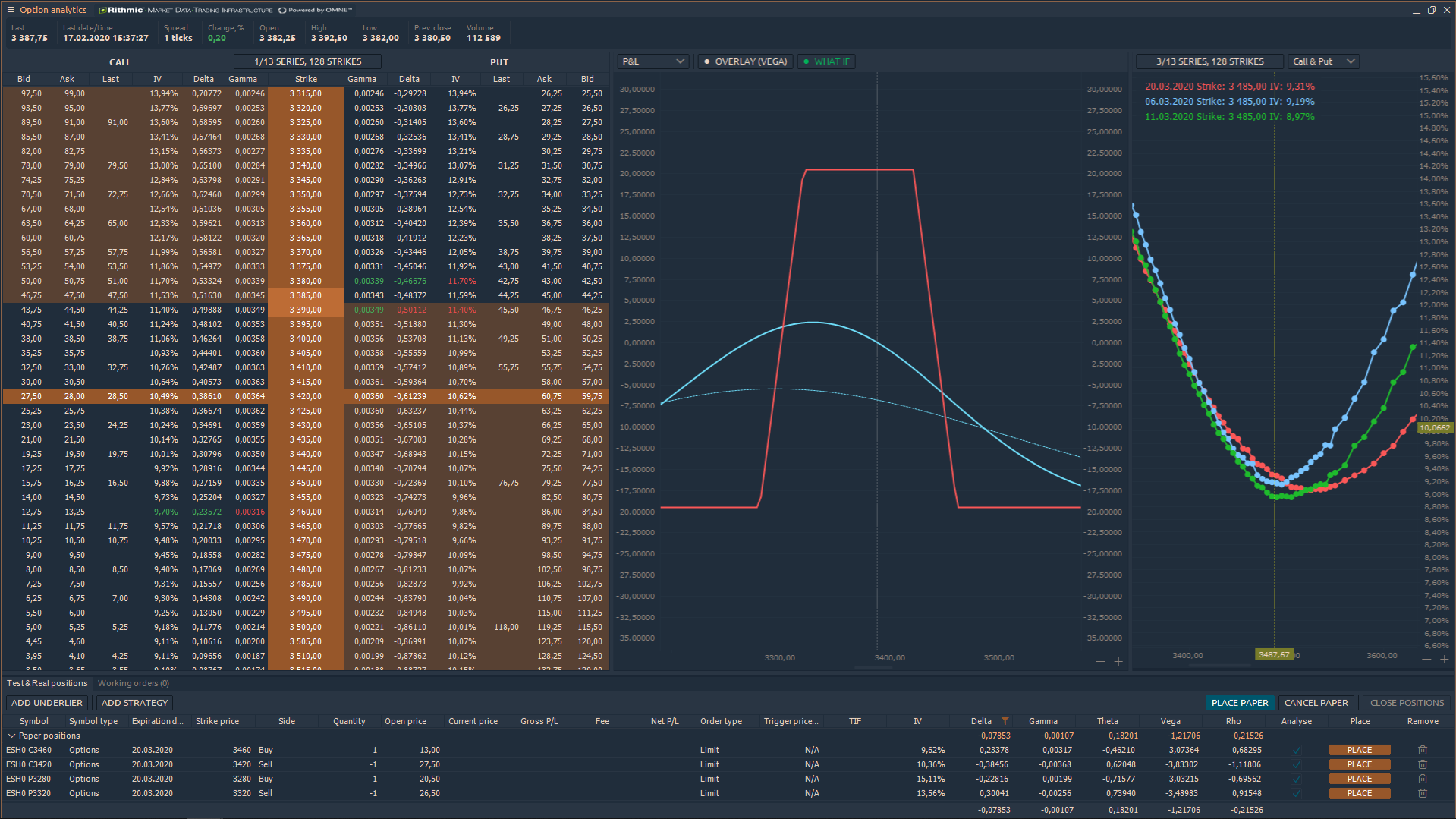

Joint mode of Option Desk & Analyzer

Add Paper positions in the options desk and the strategy analyzer will immediately show the option profile. This mode will allow you to see all changes in options desk — prices, volatility, options Greek values — and option profiles on one screen.

Option Analytics panel offers the joint mode of Options Desk and Analyzer

Analyzer

Analyzer allows users to see the profile of existing portfolio. The profile illustrates a behavior of portfolio in cases of underlying instrument price change, volatility change or time decay. Also Analyzer provides a possibility to add an overlay to main chart. It can be one of Greeks: Delta, Gamma, Vega, Theta or Rho

(1) - This controll allows to select a chart's data type. Possible options are: P/L, Delta, Gamma, Theta, Vega, Rho (2) - This controll allows to add an overlay to main chart

Add overlays on options profile chart

(3) - By clicking on this button user can apply "What if" scenarios.

Use What-If scenario analysis to assess the impact of volatility or time decay on the position

Trader is able to simulate the time decay and volatility impact scenarios simultaneously or separately by setting corresponding values. Up to 5 lines can be drawn at the same moment of time. All "What if" lines are drawn in dashed style.

Papers, Positions, Working orders

The bottom part of the panel contains combined table with paper positions, real positions and working orders

(1) - Add underlier button allows to add a paper position of underlying symbol to the list of existing positions. (2) - Hot buttons provide a possibility to make group actions with portfolio suh as: place papers, cancel papers or close real existing positions. (3) - Right click on table's header will show a context menu where trader can select visible columns. (4) - By clicking on Anayse checkboxes user can include or exclude certain positions from portfolio. (5) - Place button allows to place a paper position (6) - Remove icon allows to remove a paper position
